Project |01
3D MODEL OF MOTORCYCLE

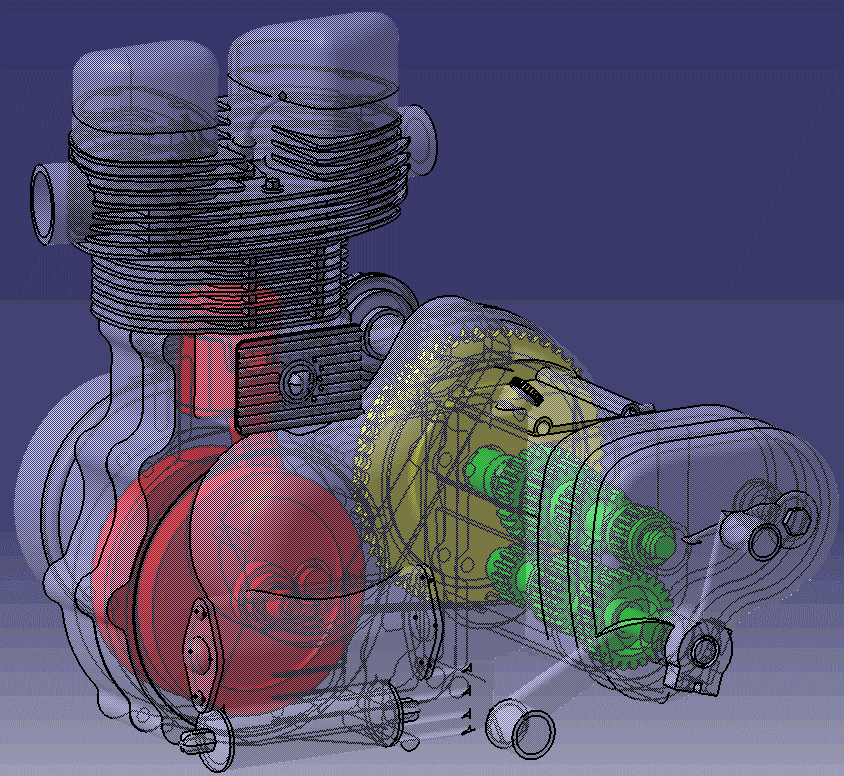

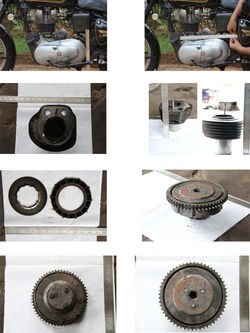

Modeled engine components of a motorcycle and assembled them in CATIA V5. The final assembly is simulated to demonstrate the mechanism of different components.
 j.gif |
|---|
 k.gif |
Project |02
MULTI-BODY DYNAMIC ANALYSIS

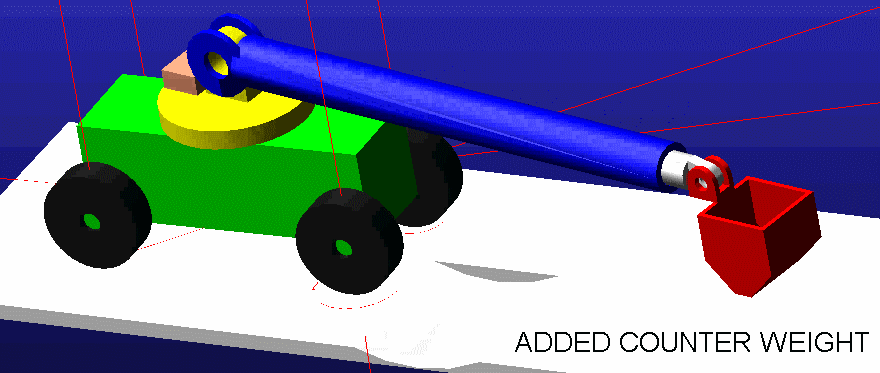

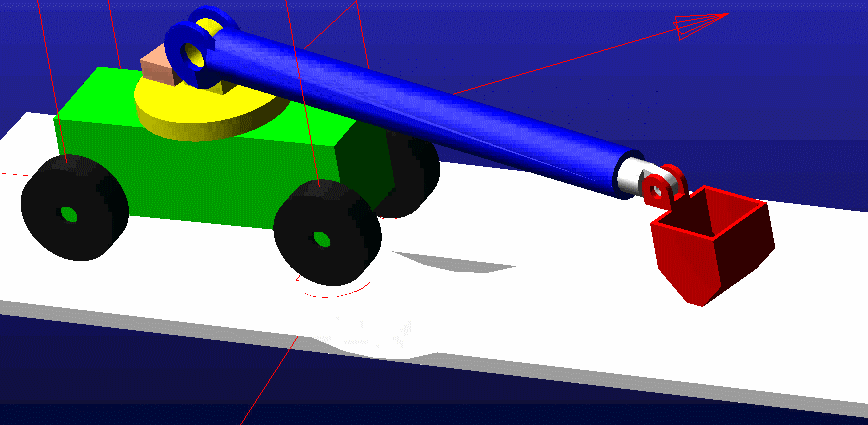

Developed a Multi-Body Dynamic Model of a crane in ADAMS and performed several simulation. By using the simulation data an optimized counterweight was determined for the crane model.
 crank1.JPG |
|---|
 Capture.JPG |
Project |03
MODAL ANALYSIS OF CRANK SHAFT
Developed an analysis model of automobile crankshaft and performed model analysis in ANSYS. A macro program has been created using Ansys Parametric Design Language (APDL) and different mode shape was generated and studied for different parameters that define the crankshaft model.
Project |04
GROUND CLEARANCE PROFILE
Generating ground clearance profile for automobiles by utilizing Multi-Body Dynamic capabilities of MSC ADAMS
 1 |
|---|
 2 |
 3 |
 5 |
 4 |
 6 |
Project |05
AUTOMATING FISH TANK
Developed a complete automation system from scratch to perform several monitoring and maintenance task in Aquarium
Project |06
3D PRINTING FOR HOME USE
Designed and Developed several products for home.
